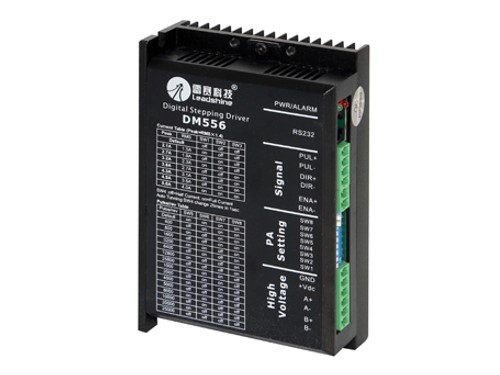

DM series

Product features:



Working voltage range covers 24VDC~80VDC, 60VAC~220VAC;

Operating current range 0.1a ~11.7A (peak current);

Support pulse/direction or dual-pulse control mode, can receive differential and single-ended signal instructions;

Optical coupling isolation signal input, strong anti-interference ability;

Provides 15 conventional microstep set points with a maximum fine score of 256 (51200ppr), allowing users to set any fine score within the maximum microstep range.

Provides 7 sets of conventional current Settings, allowing users to set the current arbitrarily within the maximum operating current range, with A resolution of 0.1a;

When the control pulse stops over 400ms, the motor current is automatically halved, further reducing the motor heating;

ProTuner, a graphical debugging software, configures driver control parameters through rS-232 communication interface, and also sets trapezoidal wave speed test mode and point motion test mode;

According to the operation characteristics of the motor, different anti-vibration strategies are adopted for low speed and medium speed to ensure the smooth operation of the motor within the full speed range.

Automatic identification of motor parameters and automatic setting of control parameters, for different motors can automatically generate control parameters, maximize the performance of the motor;

Built-in micro-step subdivision algorithm, low subdivision control instructions, high subdivision operation effect;

High reliability, providing over-voltage and over-current protection functions.





Application areas:

Suitable for all kinds of small and medium-sized automatic equipment and instruments, such as laser processing equipment, engraving equipment, medical equipment, measuring equipment, electronic processing equipment, textile and clothing equipment, etc. The effect is better when the user expects low vibration and low noise.

Specifications:
